Clara Viñas and Francesc Teixidor speak on Boron anions to improve air quality

Researchers share the results of their investigation on polymeric electrolytic membranes in UABDivulga.

16 April 2021
Snapshot of the sky in Barcelona
Snapshot of the sky in Barcelona

ICMAB Researchers Francesc Teixidor and Clara Viñas, from the Inorganic Materials & Catalysis (LMI) Group, share the results of their study “Structural and dielectric properties of cobaltacarborane composite polybenzimidazole membranes as solid polymer electrolytes at high temperature”.

In this publication, they introduce the appealing physicochemical properties of boron salts to improve polymeric electrolytic membranes, a component present in supercapacitors, fuel cells and batteries. It’s future application could suppose an improvement of air quality, in line with one of the 17 Sustainable Development Goals (SDGs) to be achieved by 2030 (#3 Ensure healthy lives and promote well-being for all at all ages).

This article was first published in UABDivulga, a dissemination portal for all research done at UAB:

Boron salts: anions that can help to reduce CO2 emissions

Fuel cells provide a sustainable and highly efficient alternative to oil based technologies that are responsible for global CO2 emissions. For this reason, researchers from the Institute of Materials Science of Barcelona (ICMAB-CSIC) and from the Universidad Politecnica de Valencia (UPV) have worked on the development of a novel part of the fuel cells, the polymer electrolyte membranes that allow the transport of protons from the anode to the cathode.

The novelty of this work is the preparation of hybrid organic-inorganic composite polymer electrolyte membranes. The inorganic part is the icosahedron ionic salt of the electroactive boron complex [Co(C2B9H11)2]- that are stable thermally and chemically. And the organic part is the polymer polybenzimidazole (PBI) that can be used at high temperatures and is widely used as a fireproof material as in the clothing of firefighters.

Previous studies of ionic conductivity of the boron salts used in this work show that boron molecules have good ionic conductivity to be used in polymer electrolyte membranes. The conductivity of these molecules depends on the cation, following the order of most to least conductive salts of [Co(C2B9H11)2]- with the cations H+>Na+>Li+.

sal bor vinas teixidor

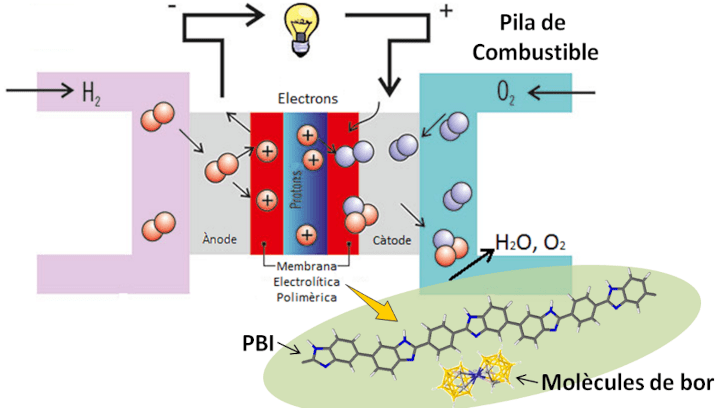

Figure: polymeric electrolytic membrane of the fuel cell

Therefore, the studies of the hybrid PBI polymer doped with the salts of the boron anion have been made and compared with the undoped polymer that was taken as a reference. The experiments carried out in this work were to see how the dielectric and conductivity properties varies in the temperature range from 20 to 160°C, with the hydrated and dry samples, in addition to their characterization.

The results obtained show that PBI membranes doped with [Co(C2B9H11)2]- have a high thermal stability (higher than pure PBI membrane from 650°C), excellent physicochemical properties in terms of hydration of the samples, and high ionic conductivity (PBI doped with the boron molecules have higher ionic conductivity than pure PBI from 150°C by two orders of magnitude).

Due to the good results obtained, it can be concluded that the development of novel polymer electrolyte membranes of PBI doped with the alkaline salts of the anion [Co(C2B9H11)2]- have interesting transport properties as solid low-cost and durable electrolytes, exhibiting high performance applications in the fields of rechargeable metal ion batteries, supercapacitors and fuel cells.

Clara Viñas and Francesc Teixidor

Reference article:

Structural and dielectric properties of cobaltacarborane composite polybenzimidazole membranes as solid polymer electrolytes at high temperature
Isabel Fuentes, Andreu Andrio, Abel García-Bernabé, Jorge Escorihuela, Clara Viñas, Francesc Teixidor and Vicente Compañ
Phys.Chem.Chem.Phys., 2018, 20, 10173. DOI: 10.1039/c8cp00372f
